A milling route matched to project stage and quantity.
CNC milling service
CNC Milling Services for Precision Parts
CNC milling for housings, brackets, plates, manifolds, fixtures, and complex prismatic parts—planned around your geometry, material, tolerances, finish, and inspection requirements.
Project guide
What should a CNC milling drawing make clear?
Identify the features that control fit and function: pockets, holes, reference faces and contours. Tool access and the relationships between machined faces influence the proposed setup.
Decision guide
Resolve access and stiffness before tightening tolerances
Feature geometry determines whether a cutter can reach the required surface and whether the part can remain supported. Flag the functional requirement before prescribing a difficult feature everywhere.
| Feature | Why it changes the route | What to show on the drawing |
|---|---|---|
| Deep pockets and narrow slots | Tool reach and clearance can restrict the cutting approach | Depth, width, allowed corner radius and which surfaces control function |
| Thin walls | Clamping and cutting forces can affect shape during machining | Wall thickness, support opportunities and the accepted measurement condition |
| Sharp internal corners | A rotating cutter leaves a radius in many inside corners | Required mating clearance; identify where a radius or relief is acceptable |
| Hole patterns on different faces | Feature relationships depend on setups and datum transfer | Datum system, position requirements and accessible inspection features |
Complete the milling drawing handover
- Identify the datum system and mating-part requirements that explain the critical feature relationships.
- Show thread standard, class and depth where applicable; identify holes or faces requiring a report after finishing.
- Mark cosmetic faces and areas that cannot accept fixture contact or tool marks. Review these alongside the access and stiffness decisions above.
Apply demanding tolerances to the features that need them. Ask for a review of access, workholding and verification when a critical feature cannot be addressed by a straightforward milling approach.
Guide updated . Confirm the manufacturing and inspection scope for your actual order.
Setup strategy selected around access and part complexity.
Material behavior considered during process planning.
Critical features and records defined before production.
Subtractive manufacturing
Turn Solid Stock Into Functional Geometry
CNC milling uses rotating cutting tools to remove material from a secured workpiece. It is well suited to non-rotational parts with flat faces, pockets, slots, bores, hole patterns, threads, contours, and accurately related features.
Before machining, we review tool access, workholding, datum strategy, internal radii, wall thickness, pocket depth, tolerance relationships, and the surfaces that must remain cosmetic.
Machining strategy
The Right Number of Axes for the Part
More axes are not automatically better. The practical route is the one that reaches the required features with controlled setups, suitable tools, and a clear inspection plan.
01 / 3-AXIS
Efficient Prismatic Milling
Suitable for plates, brackets, housings, pockets, planar faces, and features accessible from standard orthogonal setups.
02 / INDEXED
Multi-Side Access
Rotary positioning can expose additional faces and angled features while reducing manual reorientation and datum transfers.

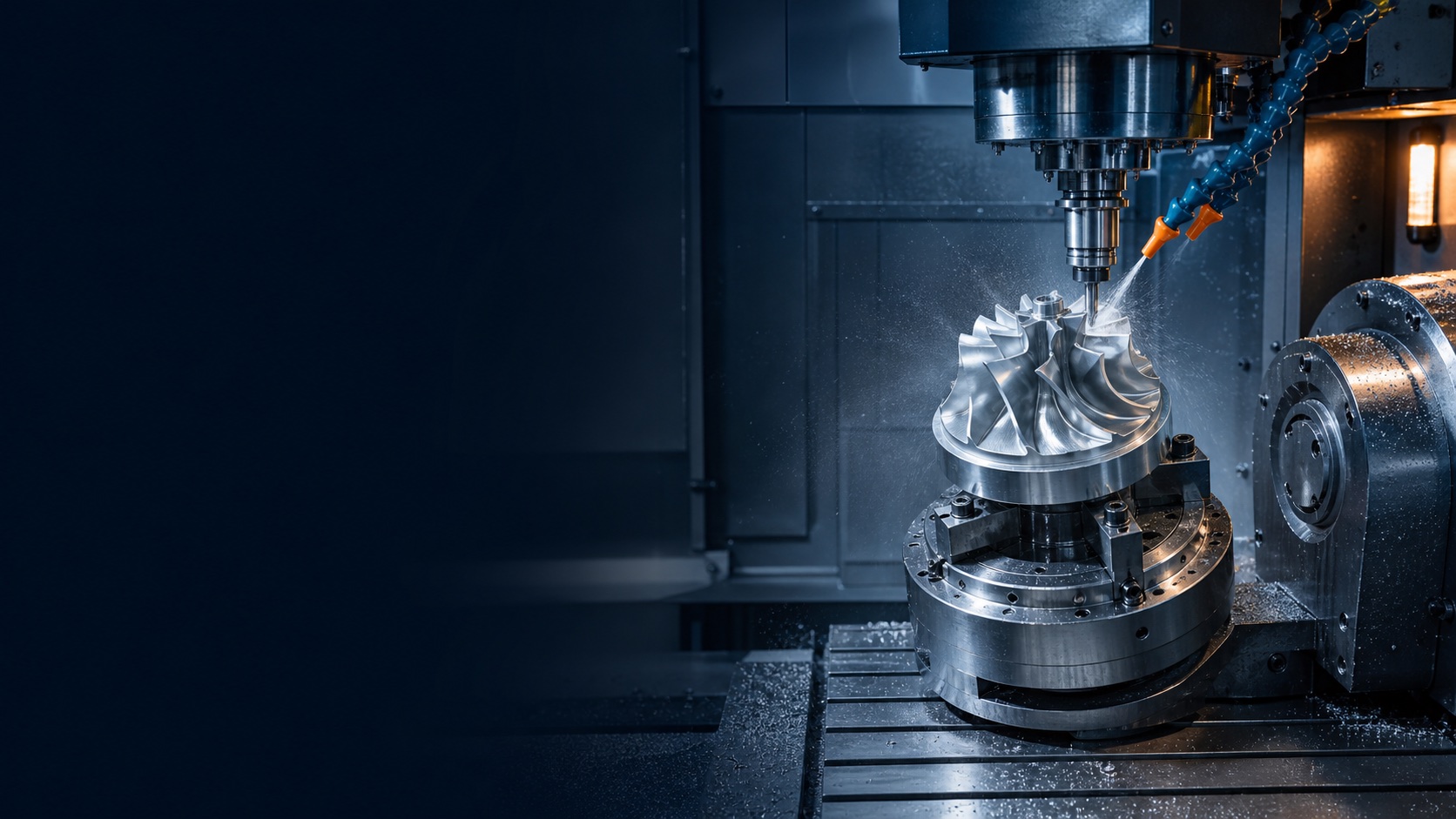

03 / 5-AXIS
Complex Geometry
Multi-axis motion can support compound angles, contoured surfaces, deep access, and complex parts where fewer setups improve consistency.

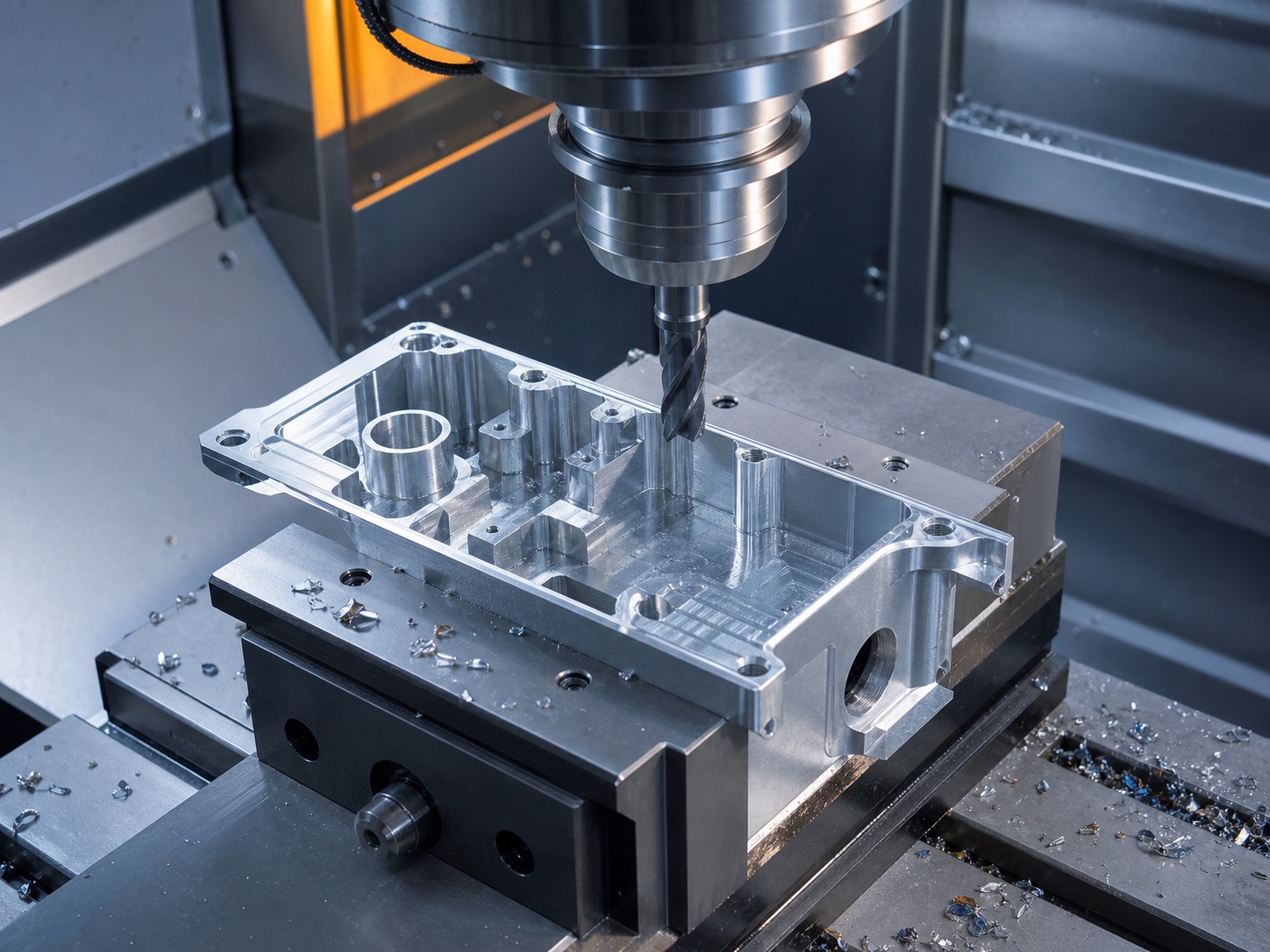

Typical milled features
Built for More Than Flat Surfaces
Feature combinations determine cutter selection, tool reach, workholding, cycle time, and the inspection method.
Faces & Shoulders
Controlled planar surfaces, steps, bosses, datums, and perpendicular relationships.
Pockets & Cavities
Open or enclosed pockets with tool-compatible depth, radii, and chip evacuation.
Slots & Profiles
Keyways, channels, edge profiles, curves, and contoured external geometry.
Holes & Threads
Drilled, bored, reamed, countersunk, counterbored, tapped, or thread-milled features.
Multi-Side Features
Related holes, ports, flats, and interfaces distributed across several part faces.
3D Contours
Freeform surfaces and transitions requiring controlled step-over and tool orientation.
Material options
Material Behavior Is Part of the Plan
Machinability, stability, strength, heat response, burr formation, cosmetic requirements, and post-processing all influence the milling approach.
Metals
- Aluminum alloys
- Stainless steel
- Carbon and alloy steels
- Brass and copper alloys
- Titanium and project-specific alloys
Engineering Plastics
- Acetal / POM
- Nylon
- ABS and polycarbonate
- PTFE
- PEEK and application-specific polymers
Controlled workflow
From CAD Review to Released Parts
- 01
Review
Confirm files, revisions, material, quantity, critical features, finish, and records.
- 02
Plan
Select stock, setups, workholding, tools, toolpaths, and inspection checkpoints.
- 03
Mill
Machine the part with in-process checks positioned around important features.
- 04
Finish & Verify
Deburr, coordinate required finishing, complete inspection, and prepare documentation.
Quality planned up front
Measure the Features That Control Function
Inspection scope is aligned with drawing requirements, feature relationships, agreed sampling, and the documentation requested for the order.
- Drawing and revision review
- First-article checks when required
- Critical-feature verification
- Inspection records by agreed scope
Common project questions
Before you request a quote
Do I need both CAD and a drawing?
Share both when available. The model describes the geometry; the drawing should identify tolerances, threads, finish and acceptance requirements that may not be captured in the model.
Can every internal corner be sharp?
A rotating milling tool leaves a radius in many internal corners. Identify the functional need so a corner radius or another operation can be reviewed.
Start with the manufacturing inputs
Send Your CNC Milling Project
Share the 3D model, current 2D drawing, material, quantity, finish, critical tolerances, inspection requirements, and target delivery timing.
Discuss Your Project
