CNC Turning Services for Rotational Parts
CNC turning for shafts, sleeves, bushings, spacers, fittings, pins, rollers, and other rotational components—planned around concentricity, runout, threads, surface requirements, and inspection needs.
Project guide
What matters when quoting a turned part?
For shafts, sleeves and other rotational parts, begin with diameters, lengths, threads and the surfaces that mate with other components. Cross-holes or flats may require an additional operation.
Decision guide
Specify the relationship between turned features
Nominal diameters describe size but do not fully describe how a shaft, sleeve or bushing must function. Define fits and geometric relationships separately, with the datum reference required for inspection.
| Requirement | Review point | Useful RFQ detail |
|---|---|---|
| Mating shaft and bore | Size limits and accepted fit | Mating function, limits or fit designation and the relevant lengths |
| Bearing or sealing surfaces | Size, form, texture and relationship to the datum axis | Feature-specific drawing requirements and whether they apply after finishing |
| Long or thin-walled geometry | Support and clamping can influence the accepted shape | Wall sections, supported areas and measurement condition |
| Threads, cross-holes and flats | Tool clearance and secondary operations affect the route | Thread specification, reliefs and angular or positional relationships |
Complete the turning drawing handover
- Give thread standard and class, blind depths and reliefs. Show required finishes on internal surfaces.
- Reference cross-holes, flats and other secondary features to the turned datums; identify the relationships that must remain aligned.
- Review support for slender parts and entry, exit and chip-clearance access for deep bores or grooves before confirming the operation sequence.
Do not substitute a size tolerance for a geometric requirement. Describe what must rotate, seal, slide or align, then confirm how the specified features will be made and checked.
Guide updated . Confirm the manufacturing and inspection scope for your actual order.
External and internal geometry planned as related features.
Functional details reviewed against access and tooling.
Datums and critical relationships defined before machining.
Subtractive manufacturing
Rotate the Workpiece, Control the Profile

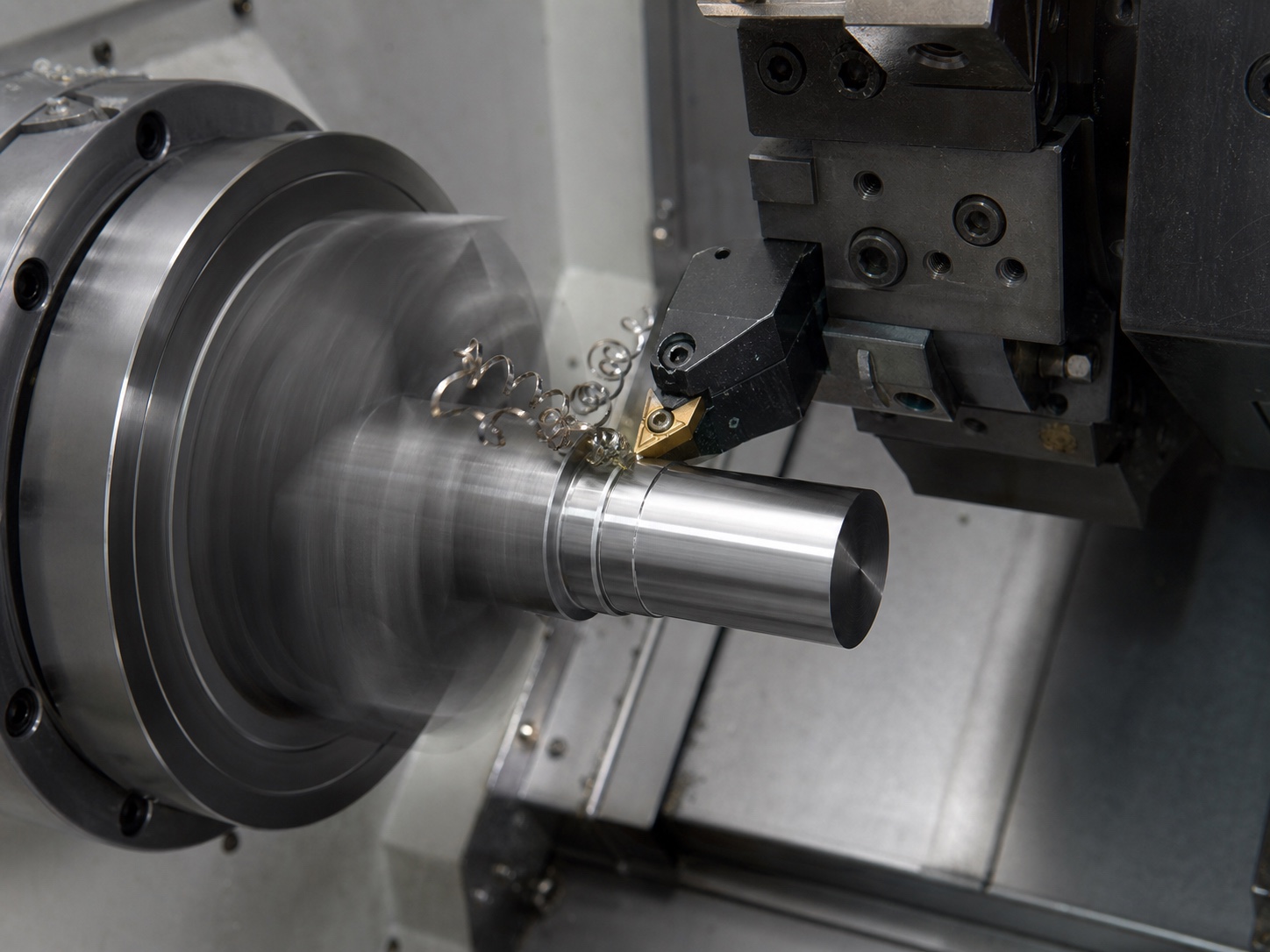

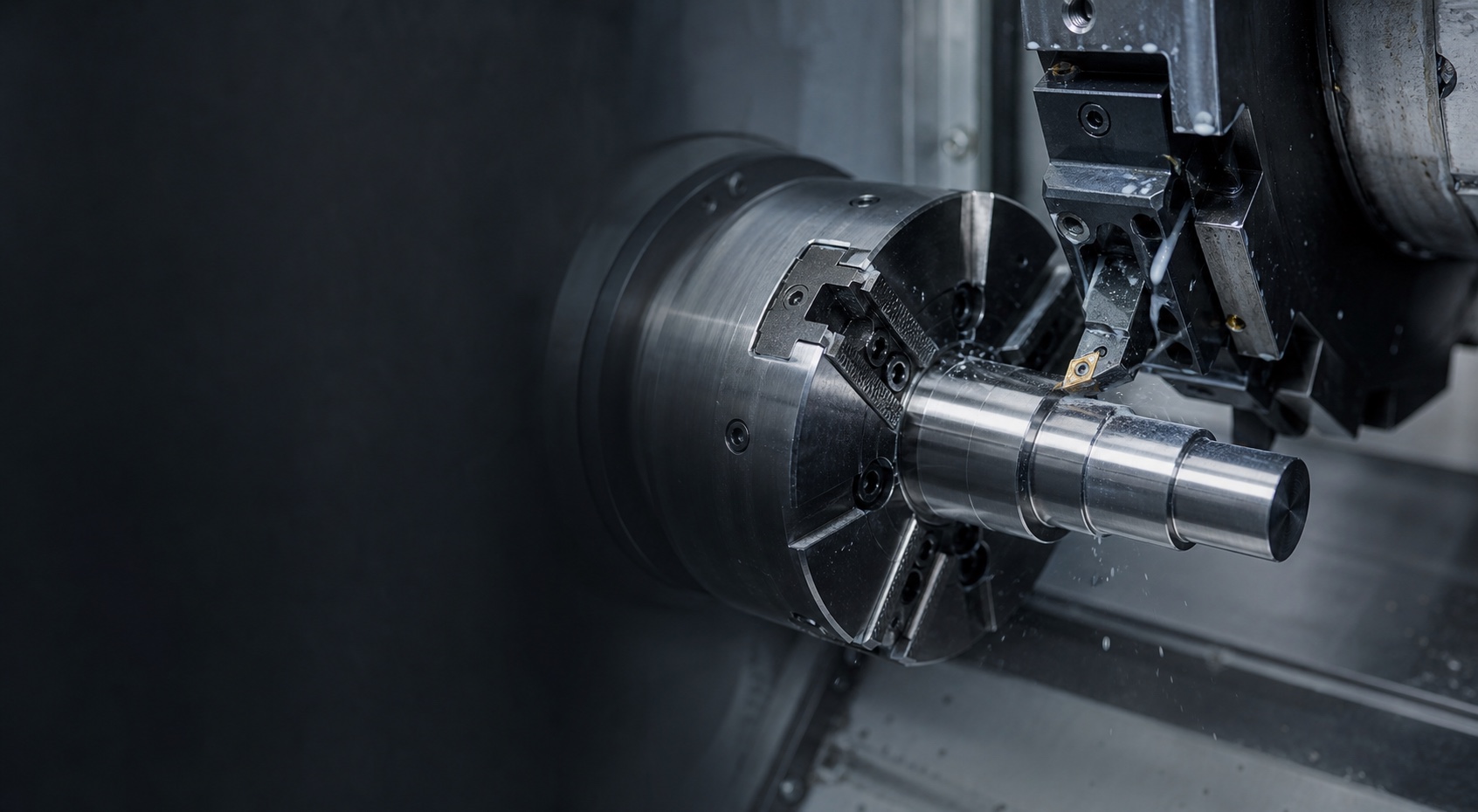

In CNC turning, the workpiece rotates while cutting tools move along controlled paths. The process is particularly effective for parts whose primary geometry is organized around a common axis.
Before machining, we review stock form, chucking and support, datum structure, diameter relationships, bore access, groove and thread geometry, parting strategy, surface finish, and any secondary milled features.
Process strategy
From Standard Turning to Mill-Turn Features
The practical route depends on part symmetry, feature access, production quantity, and whether non-rotational details should be completed in the same setup or a controlled secondary operation.
01 / TURNING
Core Rotational Geometry
Facing, outside and inside diameters, tapers, bores, grooves, shoulders, chamfers, threads, and parting operations.
02 / LIVE TOOLING
Secondary Features
Where equipment and geometry permit, driven tools can add flats, slots, axial or radial holes, and related milled details.
03 / SECOND OP
Controlled Handoffs
Complex cross-features or restricted access may be completed through a planned milling, drilling, EDM, or finishing operation.
Typical turned features
Geometry Built Around an Axis
Feature relationships—not the feature list alone—drive setup, tool selection, support, cycle planning, and measurement.
Faces & Diameters
Controlled lengths, shoulders, outside diameters, steps, tapers, and cylindrical datums.
Bores & Internal Profiles
Drilled, bored, reamed, counterbored, tapered, or profiled internal geometry.
Grooves & Undercuts
External or internal reliefs, seal grooves, retaining-ring features, and thread runouts.
External & Internal Threads
Threaded features reviewed for form, pitch, class, engagement, lead-in, and inspection method.
Axial & Radial Holes
On-axis holes and cross-features coordinated with turning or live-tool operations.
Flats, Slots & Keyways
Non-rotational details completed with suitable live tooling or a controlled secondary setup.
Material options
Material Response Shapes the Turning Plan
Chip behavior, work hardening, thermal expansion, rigidity, burr formation, thread quality, and cosmetic expectations influence tools, parameters, support, and inspection.
Metals
- Aluminum alloys
- Stainless steel
- Carbon and alloy steels
- Brass and copper alloys
- Titanium and project-specific alloys
Engineering Plastics
- Acetal / POM
- Nylon
- ABS and polycarbonate
- PTFE
- PEEK and application-specific polymers
Controlled workflow
From Drawing Review to Released Parts
- 01
Review
Confirm models, drawings, revisions, material, quantity, critical features, finish, and records.
- 02
Plan
Select stock, workholding, support, operation sequence, tooling, and inspection checkpoints.
- 03
Turn
Machine rotational features and coordinate required live-tool or secondary operations.
- 04
Finish & Verify
Deburr, complete finishing, inspect drawing requirements, and prepare agreed documentation.
Quality planned up front
Verify Size, Form, and Feature Relationships
Inspection scope is aligned with the drawing, functional datums, fits, threads, runout or concentric relationships, sampling plan, and requested documentation.
- Drawing and revision review
- First-article checks when required
- Diameter, length, thread, and runout verification
- Inspection records by agreed scope
Common project questions
Before you request a quote
How should I specify mating diameters?
Provide the required fit or limits on the drawing and identify the mating function. Avoid relying on a nominal diameter alone when fit is critical.
Should finish requirements be included at quotation?
Yes. Identify sealing, bearing, sliding or cosmetic surfaces and their required finish. State whether a later coating affects the accepted size.
Start with the manufacturing inputs
Send Your CNC Turning Project
Share the 3D model, current 2D drawing, material, quantity, finish, critical tolerances, thread specifications, inspection requirements, and target delivery timing.
